 DPMX-1216 DMX Dimmer Pack  DPMX-1216 DMX Dimmer Pack  DPMX-1216 DMX Dimmer Pack  DPMX-1216 DMX Dimmer Pack

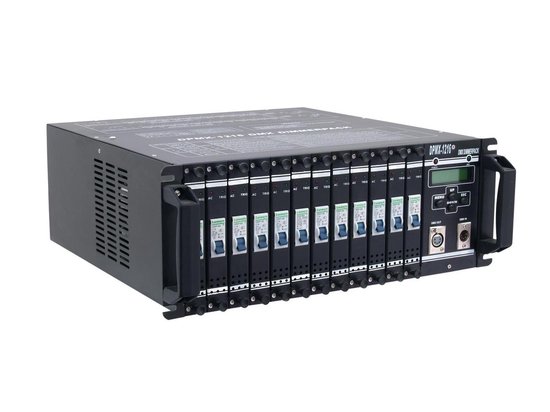

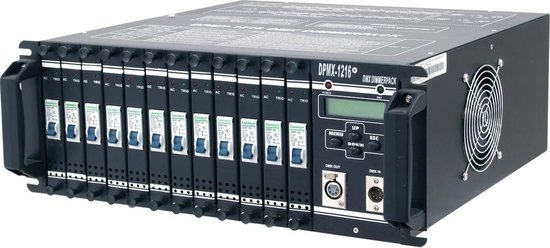

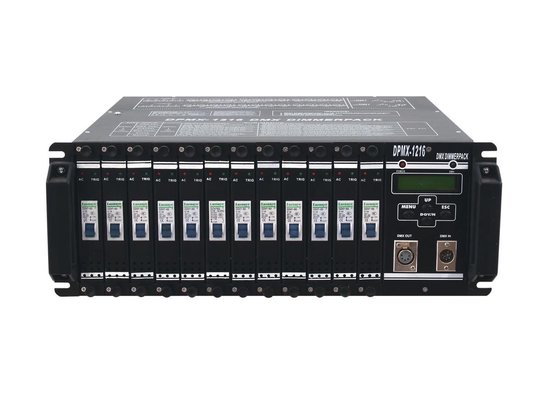

DPMX-1216 DMX Dimmer Pack

EUROLITE €878,00

  • Bestel nu en je bestelling wordt gratis verzonden!
  • Barcode: 4026397521757

Prijzen

Winkel Levertijd Prijs
Buzz-shop.nl
Shopscore: 9.1
Uiterlijk 10 december in huis €878,00 Naar aanbieder

Specificaties

Alles over dit product

Reliability is always important. Especially on professional events the breakdown of any part of the equipment cannot be accepted. Concerning spots, the DPMX-1216 dimmer pack is the right answer, because it plays it safe. This universal power pack has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.

12 x 16A dimmer, service friendly modules, connection via terminal block


12-channel dimmer pack with up to 16 A output per channel
Modular design of the individual dimmer modules for quick and easy change
3-phase or 1-phase power supply
DMX512 control or analog control
Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
Curve function for selection of different fade modes
Dim or switch option assignable to each channel
DMX Fail function: automatic digital input check to detect DMX signal errors
12 built-in programs with adjustable speed
Manual mode for dimming capability without an external lighting controller
All modes are displayed via LCD
Synchronization of several devices possible via DMX
Automatic circuit breaker per channel (type C)
Channel outputs on the rear panel via pole connectors
Rack installation with 4 U
Only for professional use
Power supply:
230-380 V AC, 50 Hz

Max. power output:
43470W

Max. current:
189 A

Max. output/channel:
3680 W

Max. current/channel:
16 A

Number of control channels:
12

Integrated programs:
12

Fuse:
12 x C 16 A, 230 V

DMX output:
3-pin female XLR socket

DMX input:
3-pin male XLR socket

Power input:
Terminal block

Dimensions (W x D x H):
482 x 485 x 176 mm

Minimum mounting depth:
500 mm

Weight:
27 kg

Aansturing

DMX Nee
Type DMX-aansluiting Geen DMX aansluiting

Overige kenmerken

Verpakking breedte 63.0000 mm
Verpakking hoogte 56.0000 mm
Verpakking lengte 28.0000 mm
